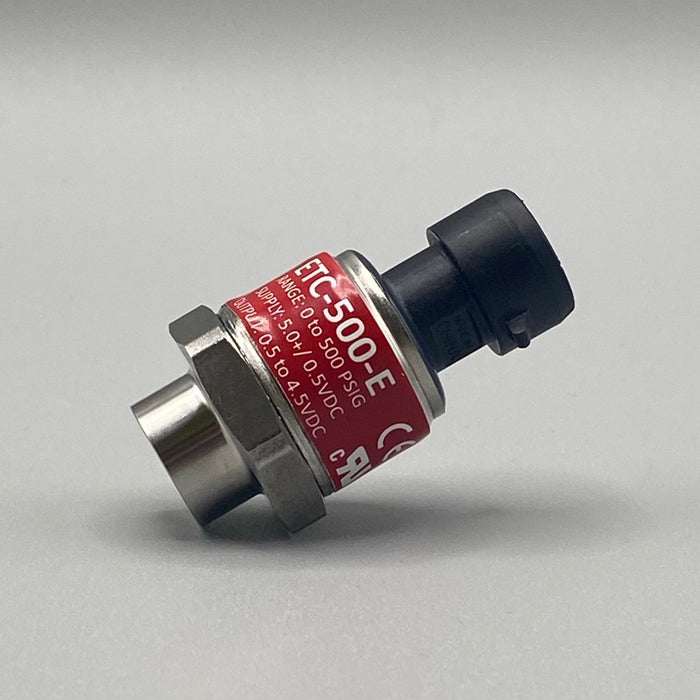

ETC-500-E Pressure Transducer
ETC-500-E
**Comparable to MCS-500C**
The ETC-500-E pressure transducer is specially designed for use in HVAC/refrigeration applications, in the most demanding environments, where low cost is needed yet maintaining high accuracy, long term reliability, and long life.
Features include, high accuracy, wide temperature range, refrigerant media compatibility and rugged design for outdoor use.
The ETC-500-E pressure transducer is UL and RoHS compliant. It is capable of surviving high vibration. ETC-500-E is a sealed gage pressure transducer ideal for outdoor environments with a cavity built out of stainless steel, ¼” SAE Female Flare fitting & Schrader valve; 7/16-20 UNF pipe thread which creates a leak- proof, all metal sealed system that makes the ETC-500-E ideal for use with rugged HVAC environments using refrigerant Media.

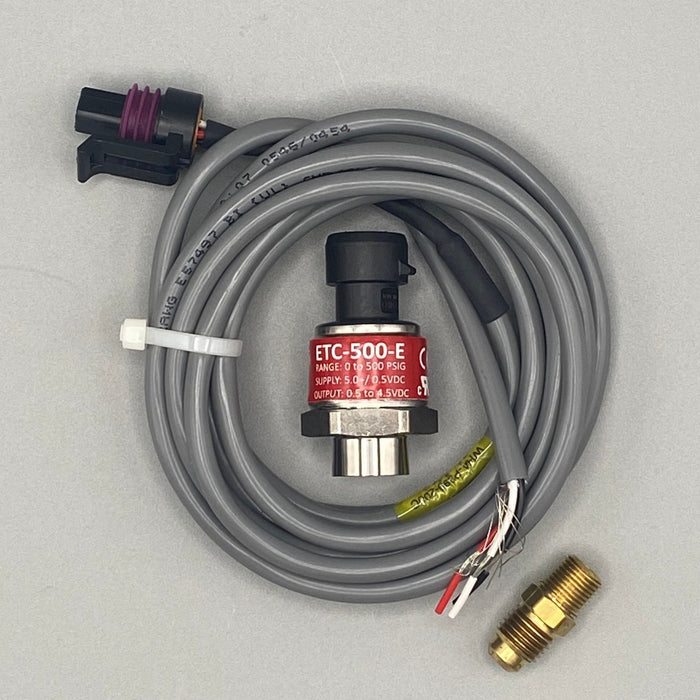

A 2M Cable is provided with the ETC-500-E.
Product Specifications
| Pressure Range | 0 to 500 psi gauge |
| Housing | 304L stainless steel |
| Sealing Material | Rugged seal ideal for outdoor environment |
| Electrical Connection | P67 |
| Operating Temperature | -40°C to 125°C (-40°F to 257°F) |
| Storage Temperature | -40°C to 125°C (-40°F to 257°F) |
| Accuracy | ± 1% F.S. typical over |
| Agency Approvals | UL873, ROHS compliant |
| Proof Pressure | 1000 psi, 6.9 MPa |
| Burst Pressure | 3600 psi, 24.8 MPa |
| Vibration | 11 g (50 to 2000 Hz) |
| Supply Voltage | 5.0Vdc +-0.5, max 10 mA |
| Output Voltage | 0.5 VDC to 4.5 VDC typical |
| Supply Current | 8 mA max @ 5 VDC with no load |
| Output Current | 2.5 mA max sink or source |
| Connection | ¼” SAE Female Flare fitting & Schrader valve; 7/16-20 UNF thread |
