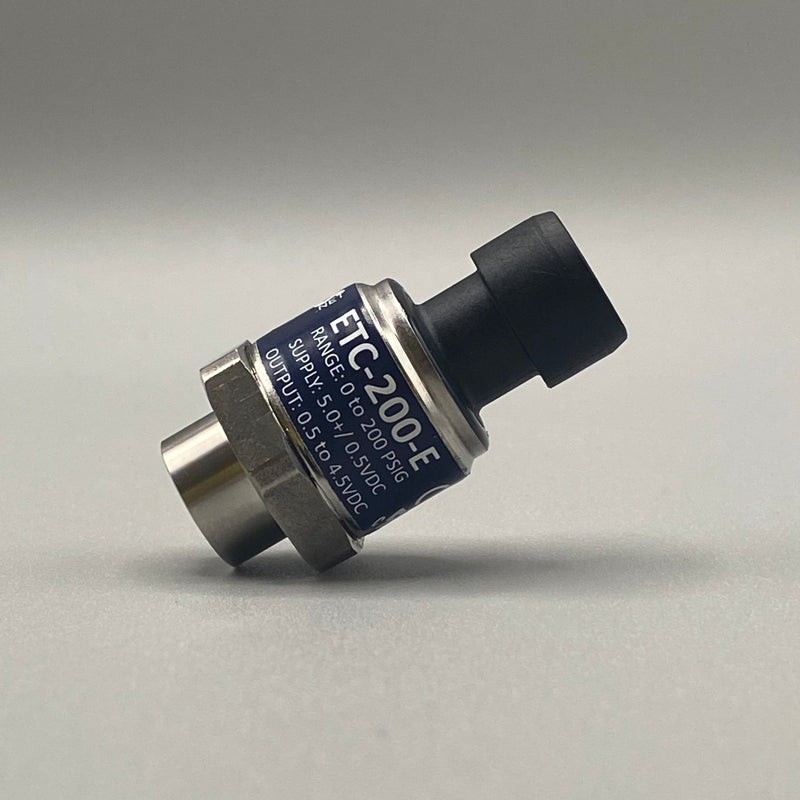

ETC-200-E Pressure Transducer

Original price $115.84
Original price $115.84 - Original price $115.84
Original price $115.84
Current price $93.87
$93.87 - $93.87
Current price $93.87

ETC-200-E

**Comparable to MCS-200C**

The ETC-200-E pressure transducer is specially designed for use in HVAC/refrigeration applications, in the most demanding environments, where low cost is needed yet maintaining high accuracy, long term reliability, and long life.

Features include, high accuracy, wide temperature range, refrigerant media compatibility and rugged design for outdoor use.

The ETC-200-E pressure transducer is UL and RoHS compliant. It is capable of surviving high vibration. ETC-200-E is a sealed gage pressure transducer ideal for outdoor environments with a cavity built out of stainless steel, ¼” SAE Female Flare fitting & Schrader valve; 7/16-20 UNF pipe thread which creates a leak- proof, all metal sealed system that makes the ETC-200C ideal for use with rugged HVAC environments using refrigerant Media.

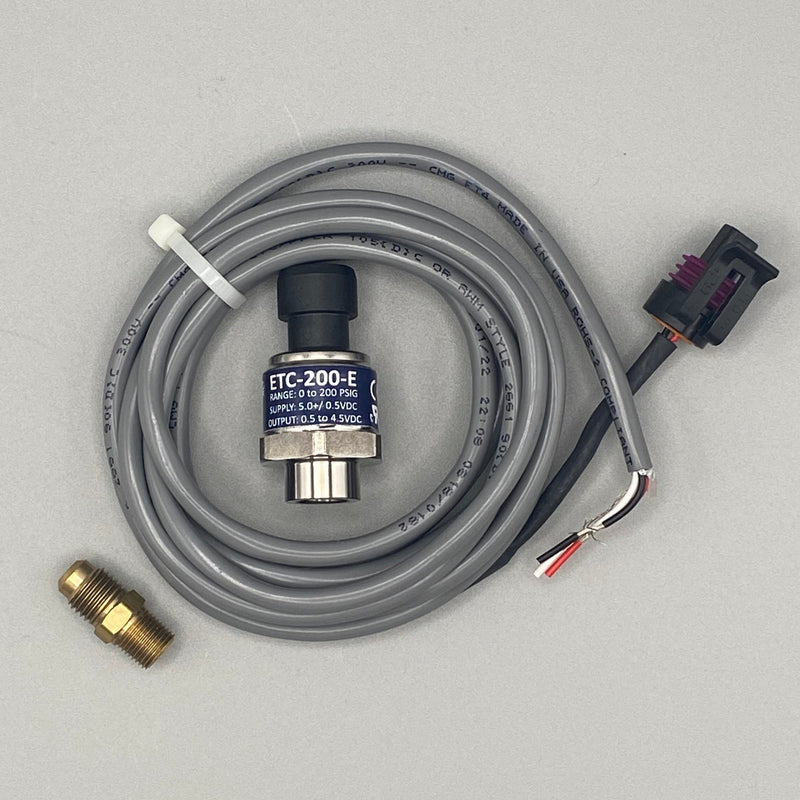

 A 2M Cable is provided with the ETC-200-E.

Spec Sheet

Product Specifications

Pressure Range 0 to 200 psi gauge
Housing 304L stainless steel
Sealing Material Rugged seal ideal for outdoor environment
Electrical Connection P67
Operating Temperature -40°C to 125°C (-40°F to 257°F)
Storage Temperature -40°C to 125°C (-40°F to 257°F)
Accuracy ± 1% F.S. typical over
Agency Approvals UL873, ROHS compliant
Proof Pressure 1000 psi, 6.9 MPa
Burst Pressure 3600 psi, 24.8 MPa
Vibration 11 g (50 to 2000 Hz)
Supply Voltage 5.0Vdc +-0.5, max 10 mA
Output Voltage 0.5 VDC to 4.5 VDC typical
Supply Current 8 mA max @ 5 VDC with no load
Output Current 2.5 mA max sink or source
Connection ¼” SAE Female Flare fitting & Schrader valve; 7/16-20 UNF thread
