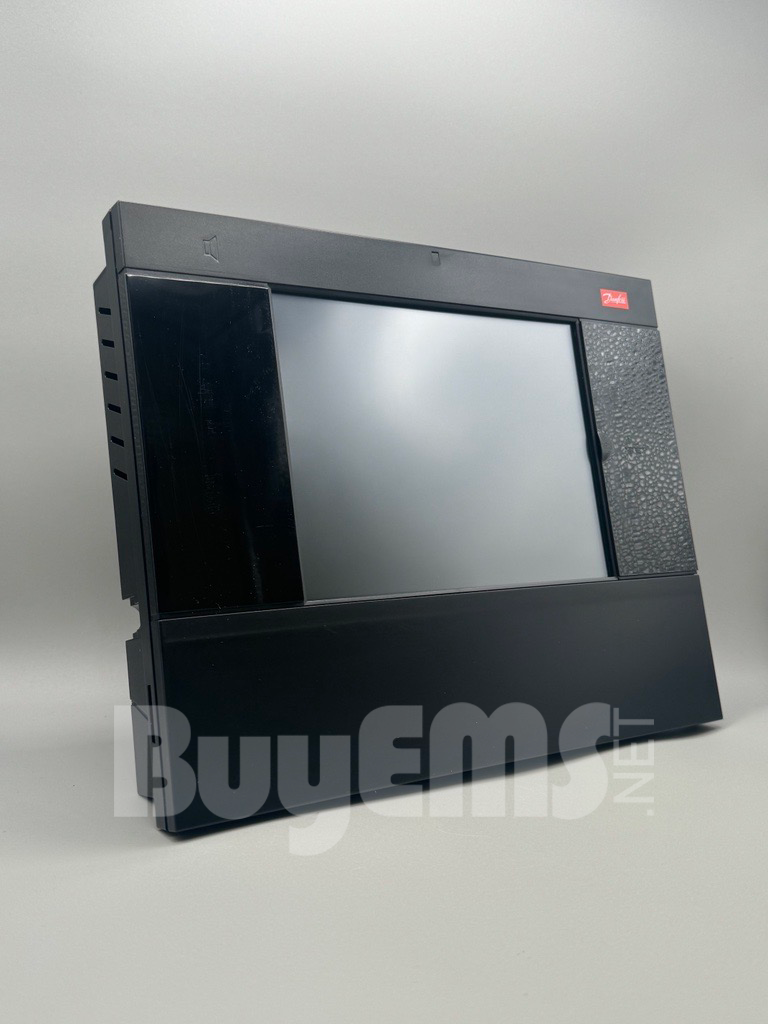

080Z4029 - Danfoss System manager, AK-SM 880A Retro Fit TP78
The 080Z4029 Danfoss System Manager AK-SM 880A Retro Fit TP78 is a versatile solution designed for comprehensive data collection and monitoring in full store applications or retrofit TP78 installations. With an IP20 enclosure rating and equipped with LON TP78 communication, this system manager ensures robust performance and compatibility across various environments.
The 080Z4029 Danfoss System Manager AK-SM 880A Retro Fit TP78 is designed to enhance operational efficiency and data management in retail settings. With its robust features and adaptable design, it ensures seamless integration and reliable performance.
Product Specifications:
- Type: AK-SM 880A
- Digital Outputs (DO): 2 pcs
- Supply Voltage: 100-240 V AC
- Frequency: 50/60 Hz
- Enclosure Rating IP: IP20
- Communication Type: LON TP78
- Product Name: System Manager
- Product Group: Supervisory solutions
- Function: Data Collection, Monitor unit
- Controller Type: System Manager
- Display on Front: Yes
- Product Language: Chinese, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Polish, Portuguese, Russian, Spanish, American
- Application Area: Full Store/ Retro-fit TP78
- Approval: C UL US LISTED, C-TICK, CE
- Further Information: With display & touchscreen
Licensed Features:
-
Refrigeration Control
- Suction Groups: 12
- Compressors per Suction Group: 9
- Circuits: 164
-
HVAC Control
- HVAC Units: 45
-
Store Lighting Control
- Lighting Zones: 30
-
Energy Metering
- Energy Meter Points: 80
-
Refrigeration Gas Detection
- Leak Detector Inputs: 50
-
Miscellaneous Sensors (via AK I/O)
- Relay Outputs: 70
- Sensor Inputs: 70
- On/Off Inputs: 80
- Variable Outputs: 70
-
Calculations and Conversion Factors
- Calculation Points: 96
- Conversion Factors: 10
-
Alarm Management Configuration Options
- Number of Alarms Stored Before Being Overwritten: 250
- Number of Alarm Network Connections: 4
-
History (logs)
- Number of History Points: 600
- Sample Rates: 5, 30 sec, 1, 2,10, 30 mins, 1 hour
-
System Capacity
- Max Reck/Pack Controllers: 12
- Max Node Count: 120
- Max Schedules: 100
- Max Multiple Fonts Interconnected to Form ‘Host Network’: 10
-
User Authorization
- Auth Levels: 7
- Users: 35
Upgrade your retail operations with the 080Z4029 Danfoss System Manager AK-SM 880A Retro Fit TP78. This advanced system manager offers superior functionality, robust communication capabilities, and reliable performance, making it the ideal choice for modern retail environments.
