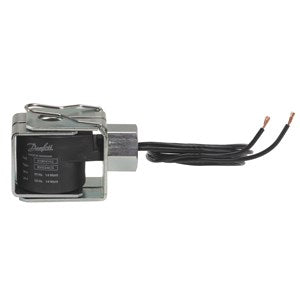

018F4104 - Danfoss Coil, 24v Conduit hub
Original price
$106.72
Original price
$106.72
-
Original price
$106.72
Original price
$106.72
Current price
$94.86
$94.86
-
$94.86
Current price
$94.86
018F4104
Danfoss Coil, type BX, Conduit boss connection.
Power supply: Alternating Current (a.c.).
Permissible voltage variation: 0% – -15%.
Power consumption, inrush: 49 VA, holding: 28 VA, 16 W.
Insulation of coil wire: Class H according to IEC 85.
Enclosure, IEC 529:
Junction box versions: NEMA 2 ~ IP 12–32.
Conduit boss versions: NEMA 4 ~ IP 54.
Ambient temperature: -40 – 50 °C / -40 – 122 °F.
Product Specifications
| TYPE CODE | BX024CS |
| WEIGHT | 0.325 Kg |
| ACTUATOR SIZE | 13.5 mm |
| AMBIENT TEMP. RANGE | -40 - 50 °C |
| AMBIENT TEMP. RANGE | -40 - 120 °F |
| APPROVAL | C UL US LISTED, LLC CDC TYSK |
| CABLE | 98,00 in |
| CABLE | 2,50 m |
| COIL CONN. | 1/2 in Conduit Hub |
| COIL DESIGN STANDARD | UL 429 |
| COIL FASTENING | Clip-on |
| COIL WINDING INSULATION CLASS | Class H to IEC 85 |
| COLOUR | BLACK |
| COMPLIANCE | UL 429 |
| EAN NO. | 5702428840941 |
| ELECTR. CONN. COMMENTS | Flying leads |
| ELECTR. CONN. | Conduit hub |
| ELECTR. CONN. SIZE | 1/2 IN |
| ELECTR. CONN. STANDARD | UL50E CLASS 4 |
| ENCLOSURE RATING | IP54 |
| NEMA RATING | 4 |
| COIL FRAME | Ext. metal frame |
| FREQ. | 50/60 HZ |
| PARTS PROGRAM NAME | EV210B |
| PARTS PROGRAM NAME | EV215B |
| PARTS PROGRAM NAME | EV220B 15 - 50 |
| PARTS PROGRAM NAME | EV220B 6 - 22 |
| PARTS PROGRAM NAME | EV225B |
| PARTS PROGRAM NAME | EV245B |
| PARTS PROGRAM NAME | EV250B |
| POLLUTION DEGREE | 3 |
| POWER CONSUMPT. 50 HZ | 14,0 W |
| POWER CONSUMPT. 60 HZ | 14,0 W |
| PRODUCT ACCESSORIES | Solenoid coil accessories |
| PROD. GROUP | Solenoid valves |
| PROD. NAME | Solenoid coil |
| REL. HUMIDITY | 0 - 97 % |
| REL. HUMIDITY CONDITIONS | Non-condensation |
| SERVICEABLE | No |
| SPARE PART NO. | 018F4104 |
| SUPPLY VOLT. AC | 24 V |
| SUPPLY VOLTAGE 50 HZ MAX | 24 V |
| SUPPLY VOLTAGE 60 HZ MAX | 24 V |
| TYPE DESIGN. | BX024CS |
| UL APPROVAL FILE | MH29671 |
