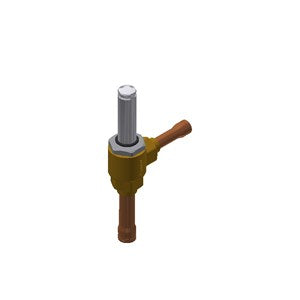

068F5231 - Danfoss Electric Expansion Valve AKV 10P1
Original price
$484.63
Original price
$484.63
-
Original price
$484.63
Original price
$484.63
Current price
$408.11
$408.11
-
$408.11
Current price
$408.11
068F5231
Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Kv value [m³/h]: 0.009
Product Specifications
|
Gross weight |
0.34 kg |
| Net weight | 0.3 kg |
|
Actuator system [mm] |
13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [Max] | 120 °F |
| Ambient temperature range [°F] [Min] | -58 °F |
| Approval | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 0.01 gal/min |
| Direction | Angleway |
| Function | NC |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 IN |
| Kv value [m³/h] | 0.009 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [Max] | 60 °C |
| Medium temperature range [°C] [Min] | -50 °C |
| Medium temperature range [°F] [Max] | 140 °F |
| Medium temperature range [°F] [Min] | -58 °F |
|
MinODP [bar] |
0 bar |
| MinODP [psi] | 0 psi |
| MOPD[bar/psi] | 35 bar/505 psi Coil Dependend |
| Orifice size [mm] | 0.5 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 IN |
| Product accessories | Electric valve accessories |
| Product family name | AKV 10P |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Rated capacity R744 [kW] | 1.3 kW |
| Refrigerants | R407A, R407F, R422B, R422D, R448A, R449A,R449B, R450A, R452A, R513A, R1234yf, R1270, R290, R32, R407H, R438A, R444B, R452B, R454B, R454C, R455A, R463A, R513B, R515A, R515B, R516A, R600, R600a, R134a, R22, R23, R404A, R407C, R410A, R744, R1233zd(E), R1234ze(E), R507A |
