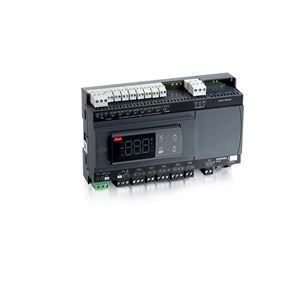

084B4083 - Danfoss Case/Room Controller (EEV) AK-CC55 Single Coil UI
The 084B4083 Danfoss AK-CC55 Single Coil UI Case/Room Controller is a sophisticated solution designed for efficient and precise refrigeration control. This controller is equipped with advanced features, including CO2 compliance, Pe Signal, and S2 Injection control, making it ideal for modern refrigeration systems.
Similar Controllers: The 084B4083 Danfoss AK-CC55 Single Coil UI Case/Room Controller is similar 084B4082 Danfoss AK-CC 55 Single Coil Controller. However, the 084B4083 has a display on the front while the 084B4082 does not.
Product Specifications:
- Type: AK-CC55
- Product Name: Case Controller Single Coil with Display
- Analog Inputs (AI): 6 pcs
- Digital Outputs (DO): 6 pcs
- Supply Voltage: 115 V AC
- Communication Type: MODBUS; Optional LON RS485
- Frequency: 50/60 Hz
- Gross Weight: 0.42 kg
- Net Weight: 0.35 kg
- Function: AKV, Pe, 5 Relays, Display
- Controller Type: Case Controller with Display
- Display on Front: Yes
- Application Area: Refrigeration Control
- Approval: C-TICK, CE
- Number of Evaporators: 1 pc
- Pressure Transmitter Support: Ratiometric
- Product Features: CO2 Compliant, Pe Signal, S2 Injection Control
- Product Group: Evaporator and Room Control
- Sensor Connection: Screw Terminals
- Temperature Sensor Support: NTC 5000, NTC10000, PTC 1000, Pt 1000
- Valve Output Type: AKV
- Product Accessories: Includes 12 pcs without terminals
The 084B4083 Danfoss AK-CC55 Single Coil UI ensures reliable performance and precise control for refrigeration applications. With robust communication options and comprehensive input/output configurations, this controller is designed to meet the demanding needs of today's refrigeration systems.
