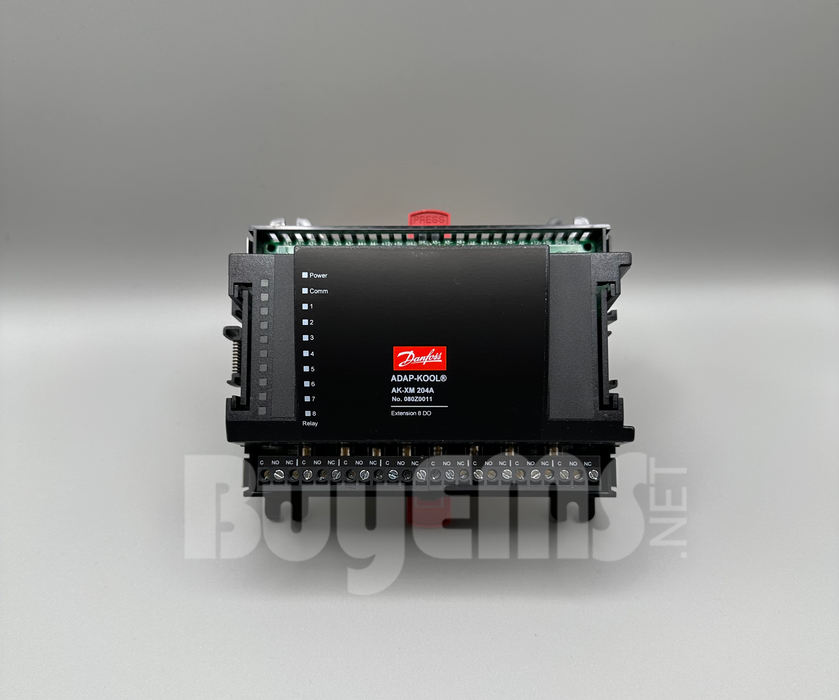

080Z0011 - Danfoss AK2 Module Type AK2-XM 204A (8DO)
The Danfoss AK-XM 204A Module significantly expands the digital output capacity of your Danfoss control systems. It supports up to nine extension modules communicating through each communication module, making it ideal for complex applications requiring numerous connections.
Similar Modules: Danfoss 080Z0011 is similar to the Danfoss 080Z0018 - Danfoss AK2 Module Type AK2-XM 204B (8DO with Override). However, the 080Z0018 has override switches on the cover while the 080Z0011 does not.
Product Specifications:
- Type Code: AK-XM 204A
- Function: Digital Outputs
- Digital Outputs (DO): 8 pcs
- Power Consumption: 3.7 VA
- Weight: 0.490 Kg
- Product Name: I/O module
- Product Group: I/O and communication modules
- Controller Type: Extension Module
- Communication: AK2 Local Bus (Requires a communication module for interfacing with frontend system managers)
- Display on Front: No
- Equipment: Euro blocks
- Application Area: Additional Inputs and Outputs
- Approval: CE, C-TICK, LLC CDC TYSK, UR
- EAN: 5702428089319
Why Choose the Danfoss 080Z0011 AK2-XM 204A Module?
- Scalability: Easily expands your system’s digital output capacity with up to nine extension modules per communication module.
- Efficiency: Optimized power consumption at 3.7 VA ensures efficient operation.
- Reliability: Built to meet stringent industry standards, providing consistent and reliable performance.
- Versatility: Suitable for a wide range of applications, from HVAC to industrial automation and refrigeration.
Upgrade your control system with the Danfoss 080Z0011 AK2-XM 204A Module to achieve enhanced digital output capabilities in your monitoring and control applications. This I/O module is a reliable and efficient solution for expanding the functionality of your existing systems.
