810-3067 - Emerson MultiFlex 168DO-16 Input, 8 Relay Out

Original price $1,892.98
Original price $1,892.98 - Original price $1,892.98
Original price $1,892.98
Current price $1,772.77
$1,772.77 - $1,772.77
Current price $1,772.77

Call or chat for current availability.

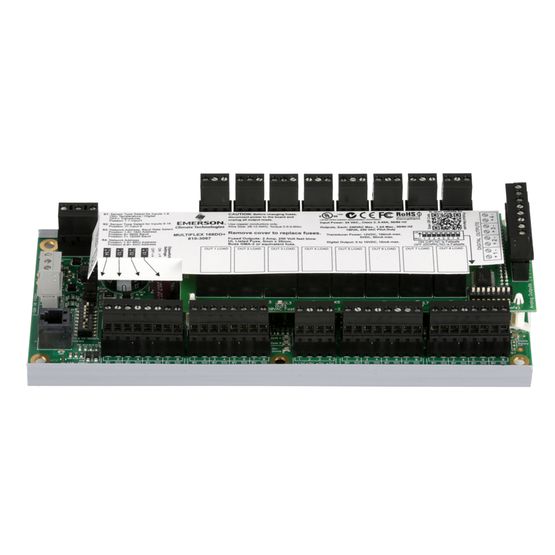

The 810-3067 MultiFlex Controller is a versatile combination input/output board designed for CPC control systems, offering a streamlined solution for managing HVAC-R and energy management applications. Built on a single universal hardware platform, this controller simplifies installation by combining inputs and outputs, reducing the need for multiple boards and cutting space requirements by up to 50%.

Product Specifications:

  • Relay Outputs: 8 relay outputs, rated for a maximum of 240V at 1.2A — ideal for managing high-voltage components.
  • Digital Outputs: 4 pulse-width modulating (PWM) digital outputs with a maximum output current of 150mA.
  • Programmable Inputs: 16 configurable analog (0-5V) or digital inputs for flexible control options.
  • Power Requirement: 24V power, supported by a non-center tapped transformer delivering more than 15VA.

Product Features:

  • Universal Hardware Platform: Combines analog/digital inputs and relay outputs for a seamless control experience.
  • Compact Design: Saves space with a reduced I/O board footprint.
  • Flexible Mounting Options: Install using standoffs or snap track for easy integration into existing systems.

Compatibility:

  • Designed for CPC control systems.

The 810-3067 MultiFlex Controller combines flexibility, efficiency, and ease of installation, making it a reliable choice for modern building control and refrigeration systems.
