080Z0013 - Danfoss AK2 Module Type AK2-XM 102B (8DI, High volt)
Original price
$385.38
Original price
$385.38
-
Original price
$385.38
Original price
$385.38
Current price
$342.56
$342.56
-
$342.56
Current price
$342.56

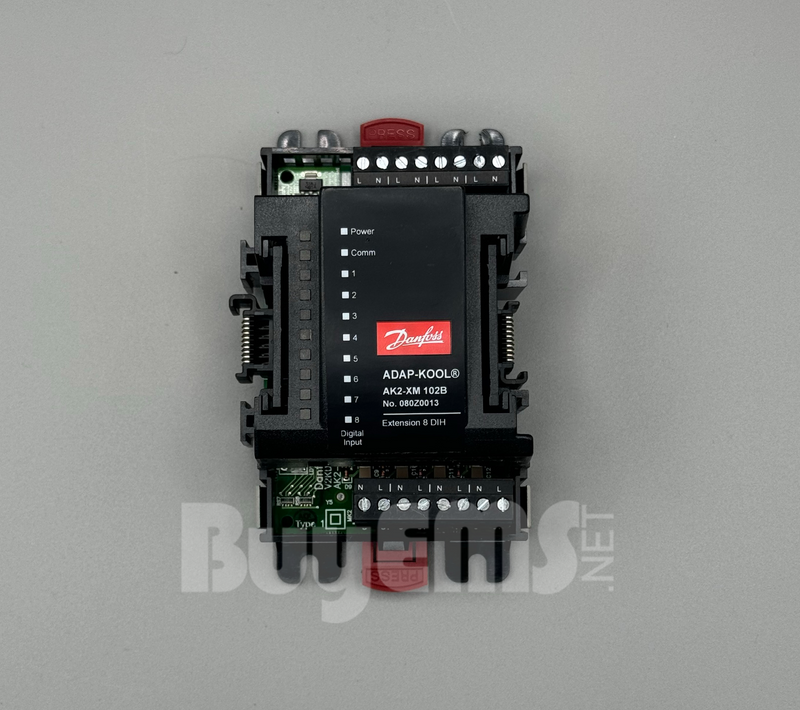

The Danfoss AK-XM 102B Module expands the digital input capacity of your Danfoss control systems. The Danfoss DIH module is used to monitor the run status of 120v inputs including items such as switches, fans, solenoids coils, compressors, condenser fans, heaters, and lights. This makes it ideal for applications that require more high-voltage digital inputs.
Product Specifications:
- Type Code: AK-XM 102B
- Digital Inputs (DI): 8
- Power Consumption: 1.0 VA
- Weight: 0.200 Kg
- Product Name: I/O module
- Product Group: I/O and communication modules
- Communication: AK2 Local Bus (Requires a communication module for interfacing with frontend system managers)
- Function: Digital Inputs
- Controller Type: Extension Module
- Display on Front: No
- Application Area: Additional inputs and outputs
- Approval: CE, C-TICK, LLC CDC TYSK, UR
- EAN: 5702428078726
- More Info: High voltage
Why Choose the Danfoss 080Z0013 AK2-XM 102B Module?
- Scalability: Easily expands your system’s high-voltage digital input capacity with up to nine extension modules per communication module.
- Efficiency: Low power consumption at 1.0 VA ensures energy-efficient operation.
- Reliability: Built to meet stringent industry standards, ensuring consistent and reliable performance.
- Versatility: Suitable for a wide range of applications, from HVAC to industrial automation and building management.
Upgrade your control system with the Danfoss 080Z0013 AK2-XM 102B Module to achieve enhanced high-voltage digital input capabilities in your monitoring and control applications. This I/O module is a reliable and efficient solution for expanding the functionality of your existing systems.
