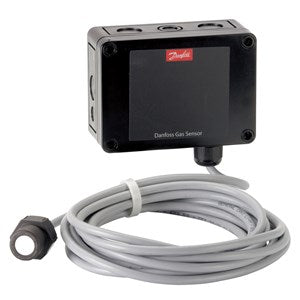

080Z2801 - Danfoss Gas Sensor DGS-IR CO2 5M
Original price
$1,449.18
Original price
$1,449.18
-
Original price
$1,449.18
Original price
$1,449.18
Current price
$1,288.16
$1,288.16
-
$1,288.16
Current price
$1,288.16
080Z2801
Gas Sensor - DGS-IR CO2 - 5m, Used for product: AKM4
Compatible with: R744
Product Specifications
|
Gross weight |
0.75 kg |
| Net weight | 0.01 kg |
|
Alarmlimits high [ppm] sensor1 |
5000 ppm |
| Alarmlimits low [ppm] sensor1 | 5000 ppm |
| Application area | Monitor and control software |
| Controller type | Operation and servicing |
| Frequency [Hz] | 50/60 Hz |
| Function | USB Hasp for AKM4 |
| Parts included | Cable glands, Calibration Cert |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product name | Gas detecting sensor |
| Refrig. range [ppm] sensor1 [Max] | 20000 ppm |
| Refrig. range [ppm] sensor1 [Min] | 0 ppm |
| Refrigerants | R744 |
|
Relative humidity (RH) [%] [Max] |
90% |
| Relative humidity (RH) [%] [Min] | 15% |
| Response delay [s] | 0 " |
| Sensor 1 type | Infrared |
| Supply voltage [V] AC [Max] | 27 V |
| Supply voltage [V] AC [Min] | 21 V |
| Supply voltage [V] DC [Max] | 29 V |
| Supply voltage [V] DC [Min] | 19 V |
| Temperature range [°C] [Max] | 50 °C |
| Temperature range [°C] [Min] | -35 °C |
| Temperature range [°F] [Max] | 122 °F |
| Temperature range [°F] [Min] | -31 °F |
| Type | DGS |
| Type designation | AKM |
| Used for product | AKM4 |
