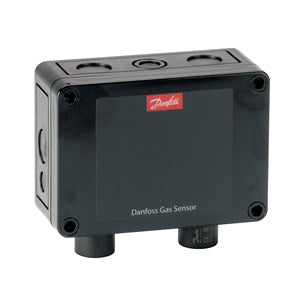

080Z2809 - DAnfoss Gas Detecting Sensor, DSG HFC gr. 1
Original price
$646.40
Original price
$646.40
-
Original price
$646.40
Original price
$646.40
Current price
$574.58
$574.58
-
$574.58
Current price
$574.58
080Z2809
Gas Sensor - DGS-SC HFC gr.1 + LED&Buzz, Used for product: AKM4.
Compatible with: R1234yf
Product Specifications
|
Gross weight |
0.36 kg |
| Net weight | 0.25 kg |
|
Alarmlimits high [ppm] sensor1 |
500 ppm |
| Alarmlimits low [ppm] sensor1 | 500 ppm |
| Application area | Monitor and control software |
| Controller type | Operation and servicing |
| Frequency [Hz] | 50/60 Hz |
| Function | USB Hasp for AKM4 |
| Parts included | Cable glands, calibration cert |
| Power consumption [A] | 0.25 A |
| Product group | Sensors |
| Product name | Gas detecting sensor |
| Refrig. range [ppm] sensor1 [Max] | 2000 ppm |
| Refrig. range [ppm] sensor1 [Min] | 0 ppm |
| Refrigerants | R1234yf |
|
Relative humidity (RH) [%] [Max] |
90% |
| Relative humidity (RH) [%] [Min] | 15% |
| Response delay [s] | 0 " |
| Sensor 1 type | Semiconductor |
| Supply voltage [V] AC [Max] | 27 V |
| Supply voltage [V] AC [Min] | 21 V |
| Supply voltage [V] DC [Max] | 29 V |
| Supply voltage [V] DC [Min] | 19 V |
| Temperature range [°C] [Max] | 60 °C |
| Temperature range [°C] [Min] | -35 °C |
| Temperature range [°F] [Max] | 140 °F |
| Temperature range [°F] [Min] | -31 °F |
| Type | DGS |
| Type designation | AKM |
| Used for product | AKM4 |
