810-3067 - Emerson MultiFlex 168DO-16 Input, 8 Relay Out
Original price
$1,892.98
Original price
$1,892.98
-
Original price
$1,892.98
Original price
$1,892.98
Current price
$1,772.77
$1,772.77
-
$1,772.77
Current price
$1,772.77
Call or chat for current availability.

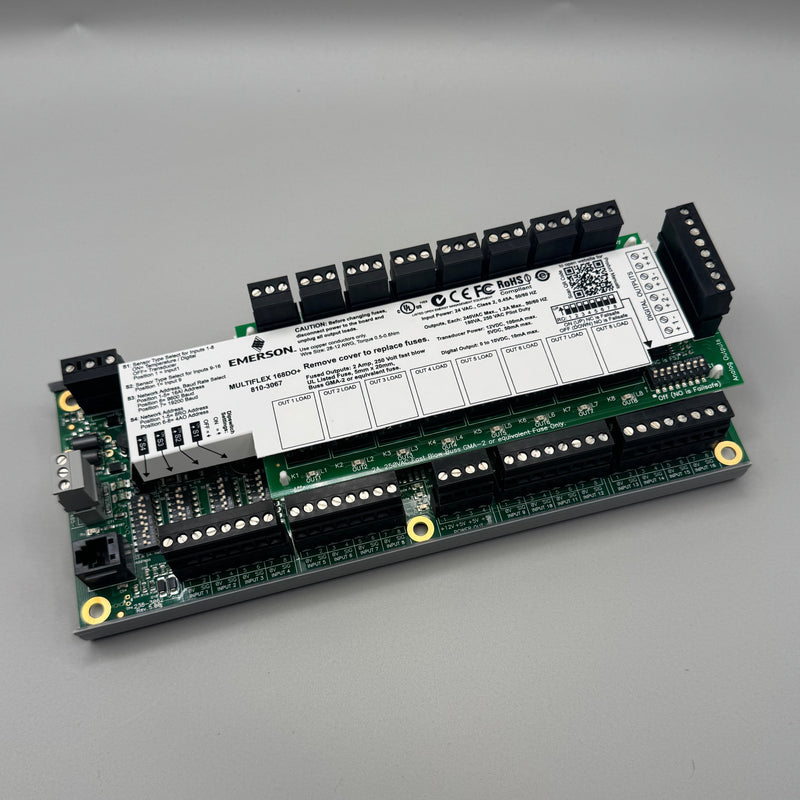

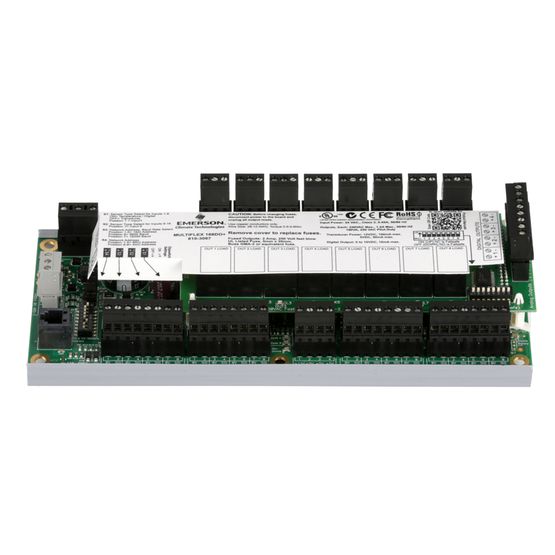

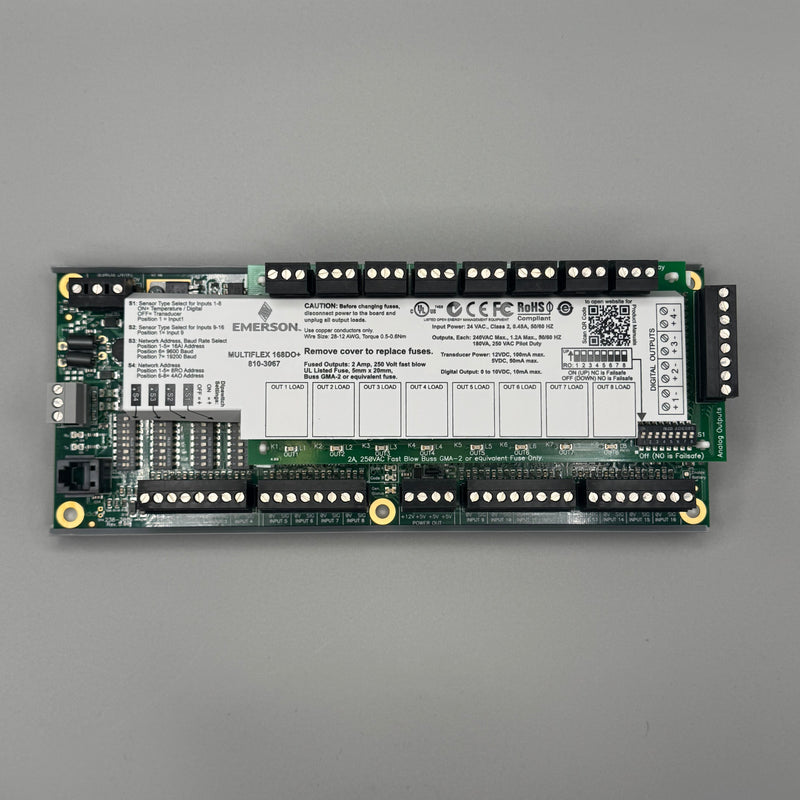

The 810-3067 MultiFlex Controller is a versatile combination input/output board designed for CPC control systems, offering a streamlined solution for managing HVAC-R and energy management applications. Built on a single universal hardware platform, this controller simplifies installation by combining inputs and outputs, reducing the need for multiple boards and cutting space requirements by up to 50%.
Product Specifications:
- Relay Outputs: 8 relay outputs, rated for a maximum of 240V at 1.2A — ideal for managing high-voltage components.
- Digital Outputs: 4 pulse-width modulating (PWM) digital outputs with a maximum output current of 150mA.
- Programmable Inputs: 16 configurable analog (0-5V) or digital inputs for flexible control options.
- Power Requirement: 24V power, supported by a non-center tapped transformer delivering more than 15VA.
Product Features:
- Universal Hardware Platform: Combines analog/digital inputs and relay outputs for a seamless control experience.
- Compact Design: Saves space with a reduced I/O board footprint.
- Flexible Mounting Options: Install using standoffs or snap track for easy integration into existing systems.
Compatibility:
- Designed for CPC control systems.
The 810-3067 MultiFlex Controller combines flexibility, efficiency, and ease of installation, making it a reliable choice for modern building control and refrigeration systems.
