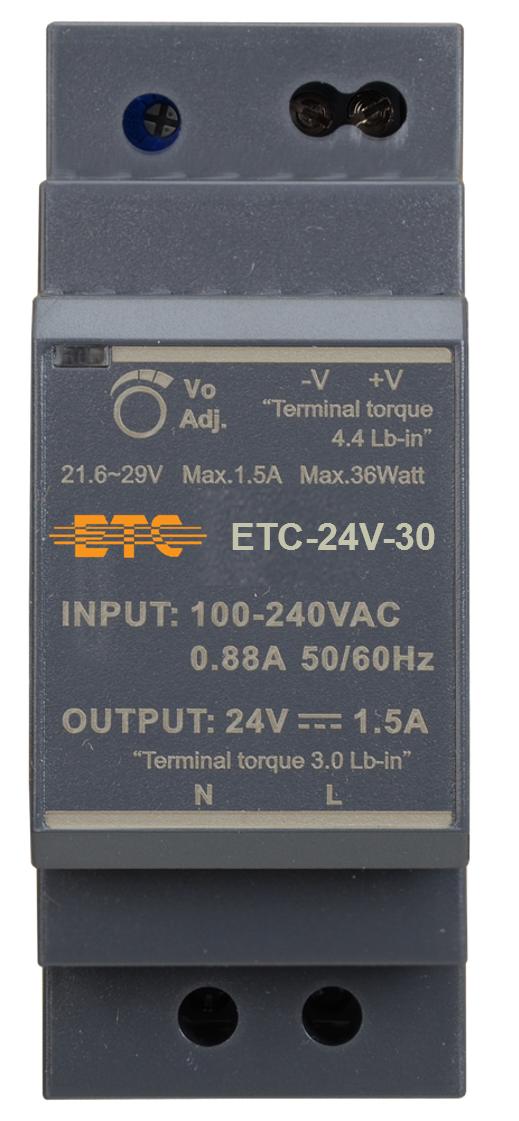

ETC-24V-30 Power Supply | Danfoss 080Z0053

The ETC-24V-30 is a reliable, industrial-grade 24V DC power supply delivering 30W with up to 1.5A current. Designed for demanding environments, it features a wide input voltage range (85–264 VAC / 120–370 VDC) and high efficiency (90%). Its rugged DIN rail design ensures stable operation in harsh conditions including extreme temperatures (-30 to +70°C), vibration, and high humidity.

Product Specifications:

Input Power

• Voltage Range: 85 ~ 264 VAC (277 VAC operational), 120 ~ 370 VDC (390 VDC operational)
• Frequency Range: 47 ~ 63 Hz
• Efficiency (Typical): 90%
• AC Current (Typical): 1.2 A @ 115 VAC, 0.8 A @ 230 VAC
• Inrush Current (Typical): 30 A @ 115 VAC, 60 A @ 230 VAC (Cold Start)

Output Power

• DC Voltage: 24 V
• Rated Current: 1.5 A
• Current Range: 0 ~ 1.5 A
• Rated Power: 30 W
• Ripple & Noise (Max): 150 mVp-p
• Voltage Adjustment Range: 21.6 ~ 29 V
• Voltage Tolerance: ±1.0%
• Line Regulation: ±1.0%
• Load Regulation: ±1.0%
• Setup, Rise Time: 500 ms, 50 ms @ 230 VAC
• Hold Up Time (Typical): 30 ms @ 230 VAC, 12 ms @ 115 VAC (Full Load)

Protection Features

• Overload: 105 ~ 160% rated output power. Hiccup mode with automatic recovery after fault removal.
• Over Voltage: 18.8 ~ 22.5 V. Shutdown protection with automatic recovery upon re-powering.

Operating Environment

• Working Temperature: -30 ~ +70°C
• Working Humidity: 20 ~ 90% RH (Non-condensing)
• Storage Temperature, Humidity: -40 ~ +85°C, 10 ~ 95% RH (Non-condensing)
• Temperature Coefficient: ±0.03%/°C (0 ~ 50°C)
• Vibration: 10 ~ 500 Hz, 2G for 10 minutes per axis (X, Y, Z)
• Operating Altitude: Up to 2000 meters

Ideal for industrial control systems and automation requiring stable 24V power under tough conditions.
