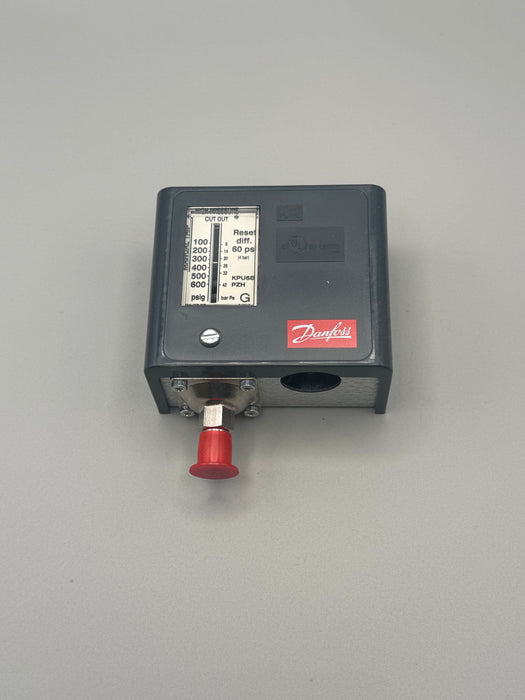

The 060-5244 Danfoss KPU 6B is a manual reset high-pressure control switch designed for reliable compressor and fan operation in refrigeration and HVAC systems. With precise pressure regulation and durable construction, it protects against excessive discharge pressures in high-performance environments.
Product Specifications:
- Contact Function: SPDT
-
Relay Contact Rating:
- 144A, 240V AC
- 24A, 240V AC
- 12W DC pilot duty
- FLA: 24A, 120V AC
- LRA: 144A, 120V AC
- Pressure Regulation Range: 8 to 42 bar (100 to 600 psig)
- Differential: 4 bar (60 psi)
- Maximum Working Pressure: 46.5 bar (675 psig)
- Maximum Test Pressure: 50 bar (725 psig)
- Temperature Range: 40°C to 50°C (-40°F to 122°F)
-
Pressure Connection:
- Size: 1/4" flare, male
- Standard: DIN 8906
-
Electrical Connection:
- Hole size: 7/8"
- Compatible with flexible or solid wiring (0.5-2.5 mm²)
- Enclosure Rating: IP30, Nema 1
-
Compliance and Approvals:
- CE, LVD, PED, RoHS, UL873, CS C22.2
- PED Category IV
Refrigerant Compatibility:
- R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A
- R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B, R744
The Danfoss KPU 6B (060-5244) offers accurate high-pressure control and dependable system protection, making it an excellent fit for demanding refrigeration and air conditioning applications.
