060G1037 - Danfoss AKS 32R Pres. Trans. -1 to 12 BAR - Ratiometric output 1/4 " NPT

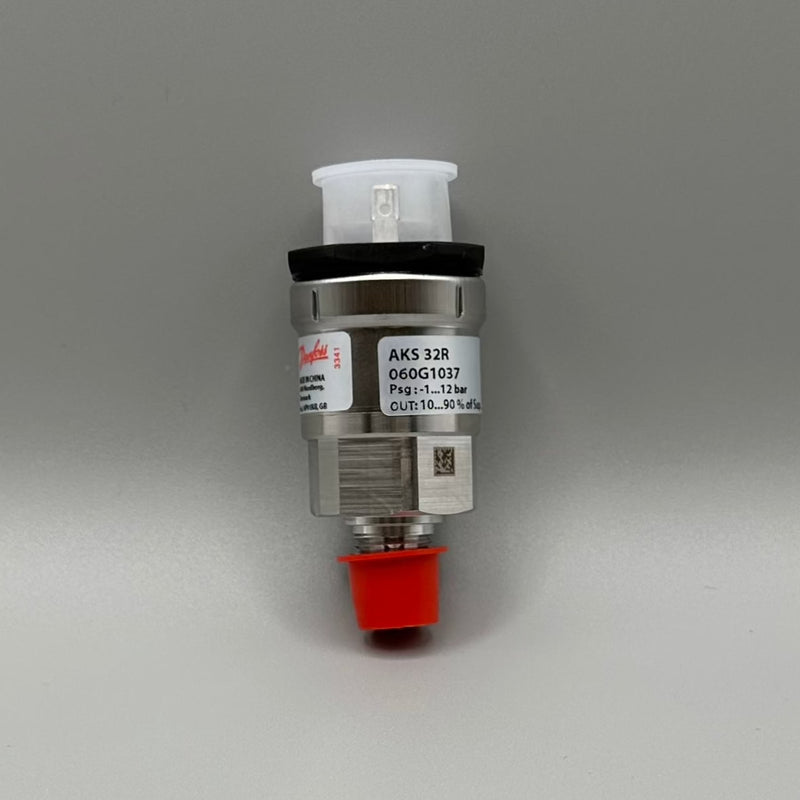

The Danfoss 060G1037 AKS 32R Pressure Transmitter is a ratiometric sensor for refrigeration systems. It measures pressure from -1.00 to 12.00 bar (-14.50 to 174.05 psi) and outputs a 10–90% ratiometric signal. Designed for accuracy and reliability in harsh conditions.
Product Specifications:
- Type Code: AKS 32R
- Pressure Range: -1.00 to 12.00 bar (-14.50 to 174.05 psi)
- Output Signal: 10–90% ratiometric
- Supply Voltage: 4.75–8.00 V DC
- Temperature Range: -40 to 85°C (-40 to 185°F)
- Accuracy: ±0.3% FS (typical), ±0.8% FS (max)
- Pressure Connection: NPT 1/4-18 Male (ANSI/ASME B1.20.1)
- Electrical Connection: DIN-plug, 4 pin, EN 175301-803-A, Male
- Enclosure Rating: IP65 for moisture protection
- Approvals: ATEX, C UR, CSA, GOST POCC (UL approved)
