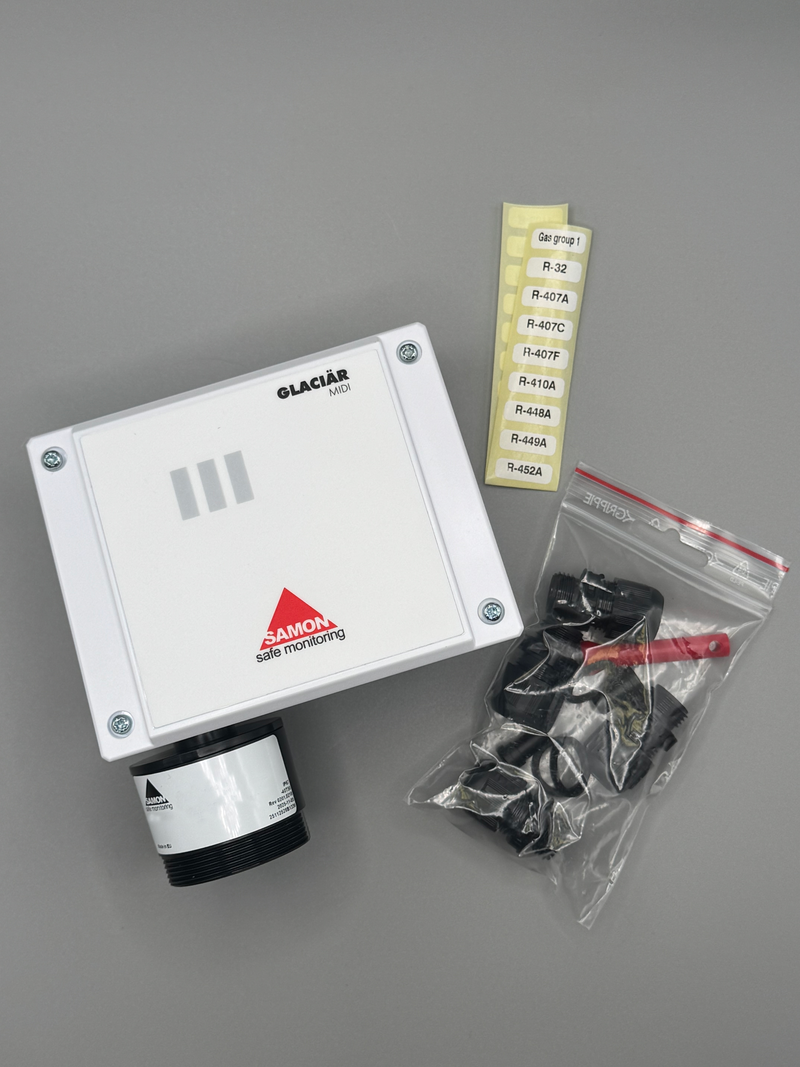

SAMON GLACIÄR MIDI Leak Detector

GLACIÄR MIDI detects leaks of refrigerant gases that are harmful to the
environment we live in, and harmful to the environments that people work in.
By mitigating these leaks, our planet is protected against greenhouse gas
emissions, our colleagues stay safe and healthy, and property is protected against the risks of system failure and explosion.

Recommended Transformer:  Pair your GLACIÄR MIDI with the ETC-24V-60 | Power Supply. We recommend 1 Transformer per 8 Units.

Product Specifications:

Analog Output

• Selectable analog output range: 1...5V; 0...10V; 2...10V; 4...20mA (default)

Power Supply

• Operating voltage: 15 to 24 VDC; 24 V AC/DC, 50/60 Hz (Selected automatically
• Operating effect and current, max.: 4W, 170mA @ 24VDC

Interfaces

• Visible indicator: Multi-color Status LED
• Bluetooth®: BLE (Service app)
• Relays:
  • 2 SPDT
  • 1 A at 24 VAC/VDC, resistive load
• Switches: Service wheel (x1) and Magnetic (x1)
• Analog service output: 0-10VDC
• Modbus RTU over RS-485: Baud rate: 9,600 or 19,200 (default)

Environmental

• Operating temperature: -40° to 122° F (-40° to 50° C)
• Storage temperature: -40° to 122° F (-40° to 50° C)
• Humidity: 5 to 90 %RH, non-condensing
• Enclosure protection: IP67
• Enclosure material: Polycarbonate

Dimensions

• Enclosure Size (W×H×D):
  • Built-In: 134x102x54 mm
  • Remote, main enclosure: 134x102x54 mm
  • Remote, sensor enclosure: 103x50 mm
• Weight
  • Built-In: 0.95 lbs (430 g)
  • Remote: 1.46 lbs (660 g)

Product Specifications: SAMON GLACIÄR MIDI & Accessories Cut Sheet
