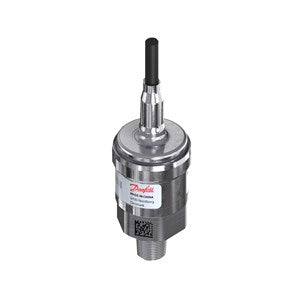

060G1890 - Danfoss AKS32 0-500 PSI Transducer

The Danfoss AKS 32 (060G1890) pressure transducer measures 0–500 PSIG with a 1–6 V DC output signal. Operates on a 9–30 V DC supply. Compatible with ECI systems using 1/8" NPT male connection. Includes 8-meter screened cable.

Product Specifications:

• Type Code: AKS 32
• Pressure Range: 0–500 psi (0–34.47 bar), Gauge
• Output Signal: 1–6 V DC
• Supply Voltage: 9–30 V DC
• Max Overload Pressure: 800 psi
• Accuracy (Typical): ±0.3% FS
• Accuracy (Max): ±0.8% FS
• Non-Linearity BFSL: ±0.2% FS
• Max Response Time: 4 ms
• Compensated Temp Range: 0 to 80 °C (32 to 176 °F)
• Ambient/Medium Temp: –40 to 85 °C (–40 to 185 °F)
• Pressure Connection: 1/8-27 NPT Male (ANSI/ASME B1.20.1)
• Electrical Connection: 8 m (315 in) screened cable
• Wire Colors: Red (+Supply), White (+Output), Black (Common)
• Enclosure Rating: IP67
• Certifications: ATEX Ex nA IIA T3 Gc, C UR, CSA, GOST
• Weight: 0.592 kg
• EAN: 5702423205431
• Product Group: Sensors
• Product Name: Pressure Transmitter
