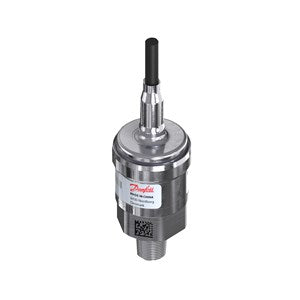

060G2101 - Danfoss AKS 33 Pressure Transmitter 4-20ma Output
Original price
$405.99
Original price
$405.99
-
Original price
$405.99
Original price
$405.99
Current price
$341.88
$341.88
-
$341.88
Current price
$341.88
060G2101
Use with EKC 316
Danfoss AKS 33, 4-20mA output signal.
AKS 33 is a pressure transmitter that measures a pressure and converts the measured value to a 4-20 mA output signal.
The output signal is adapted to the controls in the ADAP-KOOL® Refrigeration control system.
Product Specifications
| TYPE CODE | AKS 33 |
| WEIGHT | 0.181 Kg |
| - COMMON | Pin 2 |
| + SUPPLY | Pin 1 |
| ACCURACY, MAX. ±FS | 0,80 % |
| ACCURACY, TYPICAL ±FS | 0,3 % |
| ADJ. ZERO POINT/SPAN | No |
| AMBIENT TEMP. RANGE | -40 - 85 °C |
| AMBIENT TEMP. RANGE | -40 - 185 °F |
| APPROVAL | ATEX, C UR, CSA, GOST POCC |
| APPROVAL NOTE | ATEX Ex nA IIA T3 Gc |
| APPROVAL STD. | 6967179 |
| APPROVAL STD. | E227388 |
| APPROVAL STD. | E31024 |
| COMPENSATED TEMP. RANGE | -30 - 40 °C |
| COMPENSATED TEMP. RANGE | -22 - 104 °F |
| EAN NO. | 5702422065906 |
| ELECTR. CONN. TYPE | DIN-plug, Pg 9, EN 175301-803-A, Male and Female |
| ENCLOSURE RATING | IP65 |
| FLUSH DIAPHRAGM | No |
| INTRINS. SAFE | No |
| MEDIUM TEMP. | -40 - 85 °C |
| MEDIUM TEMP. | -40 - 185 °F |
| NON-LINEARITY BFSL ±FS | 0,20 % |
| OUTPUT SIGNAL TYPE | 4 - 20 mA |
| MAX. OVERLOAD PRESS. | 33,0 bar |
| MAX. OVERLOAD PRESS. | 479 psi |
| PRESS. CONN. STD. | ANSI/ASME B1.20.1 |
| PRESS. CONN. TYPE | NPT - 1/4-18 Male |
| PRESS. RANGE | -1,00 - 12,00 bar |
| PRESS. RANGE | -14,50 - 174,00 psi |
| PRESS. UNIT REF. | Gauge (relative) |
| PROD. GROUP | Sensors |
| PROD. NAME | Pressure transmitter |
| PULSE SNUBBER | No |
| MAX. RESPONSE TIME | 4 ms |
| SPEC. KEY | AKS 33-DH31-A1EC04-0 |
| SUPPLY VOLT. DC | 10,00 - 30,00 V |
