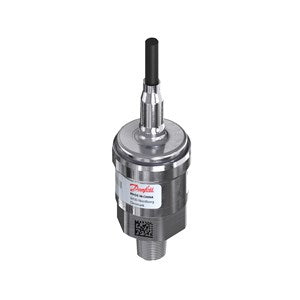

060G3990 - Danfoss AKS 32 Pressure Transducer 0-200 PSIG 8 Meter Wire 1/8" NPT

The Danfoss AKS 32 (060G3990) is a 0–200 PSIG pressure transducer with a 1–5 V DC analog output, designed for use with ADAP-KOOL® refrigeration control systems.

Product Specifications:

• Type Code: AKS 32
• Pressure Range: 0–200 psi (0–13.79 bar), Gauge
• Output Signal: 1–5 V DC
• Supply Voltage: 9–30 V DC
• Max Overload Pressure: 400 psi
• Accuracy (Typical): ±0.3% FS
• Accuracy (Max): ±0.8% FS
• Non-Linearity BFSL: ±0.2% FS
• Response Time: ≤4 ms
• Compensated Temp Range: –30 to 40 °C (–22 to 104 °F)
• Ambient/Medium Temp: –40 to 85 °C (–40 to 185 °F)
• Pressure Connection: 1/8-27 NPT Male (ANSI/ASME B1.20.1)
• Electrical Connection: 8 m (315 in) screened cable
• Wire Colors: Red (+Supply), White (+Output), Black (Common)
• Enclosure Rating: IP67
• Certifications: ATEX Ex nA IIA T3 Gc, C UR, CSA, GOST
• Weight: 0.556 kg
• EAN: 5702423230891
• Product Group: Sensors
• Product Name: Pressure Transmitter
