060G3991 - Danfoss AKS 32 Pressure Transducer 0-500 PSIG 8 Meter Wire 1/8" NPT

Original price $405.99
Original price $405.99 - Original price $405.99
Original price $405.99
Current price $341.88
$341.88 - $341.88
Current price $341.88

060G3991

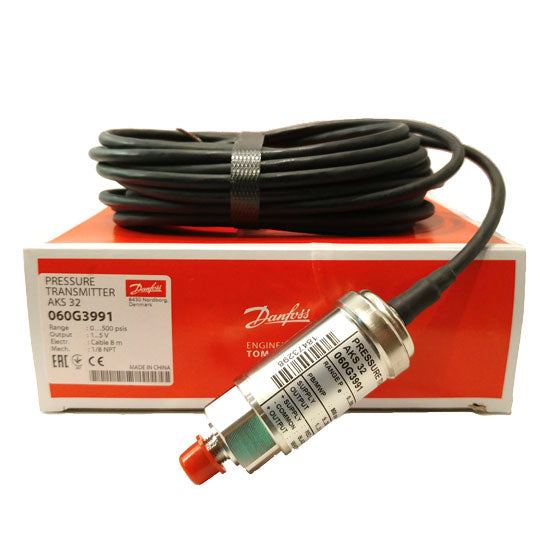

Danfoss AKS 32 Pressure Transducer 0-500 PSIG

AKS 32 is a pressure transmitter that measures a pressure and converts the measured value to a 1 - 5 V DC output signal.
The output signal is adapted to the controls in the ADAP-KOOL® Refrigeration Control System.

Product Specifications

TYPE CODE AKS 32
WEIGHT 0.535 Kg
- COMMON BLACK
+ OUTPUT White
+ SUPPLY Red
ACCURACY, MAX. ±FS 0,80 %
ACCURACY, TYPICAL ±FS 0,3 %
ADJ. ZERO POINT/SPAN No
AMBIENT TEMP. RANGE -40 - 85 °C
AMBIENT TEMP. RANGE -40 - 185 °F
APPROVAL ATEX, C UR, CSA, GOST POCC
APPROVAL NOTE ATEX Ex nA IIA T3 Gc
APPROVAL STD. 6967179
APPROVAL STD. E227388
APPROVAL STD. E31024
CABLE 315,00 in
CABLE 8,00 m
COMPENSATED TEMP. RANGE 0 - 80 °C
COMPENSATED TEMP. RANGE 32 - 176 °F
EAN NO. 5702423230907
ELECTR. CONN. COMMENTS Screened
ELECTR. CONN. TYPE CABLE
ENCLOSURE RATING IP67
FLUSH DIAPHRAGM No
INTRINS. SAFE No
MEDIUM TEMP. -40 - 85 °C
MEDIUM TEMP. -40 - 185 °F
NON-LINEARITY BFSL ±FS 0,20 %
OUTPUT SIGNAL TYPE 1 - 5 V
MAX. OVERLOAD PRESS. 800 psi
PRESS. CONN. STD. ANSI/ASME B1.20.1
PRESS. CONN. TYPE NPT - 1/8-27 Male
PRESS. RANGE 0,00 - 34,47 bar
PRESS. RANGE 0,00 - 500,00 psi
PRESS. UNIT REF. Gauge (relative)
PROD. GROUP Sensors
PROD. NAME Pressure transmitter
PULSE SNUBBER No
MAX. RESPONSE TIME 4 ms
SPEC. KEY AKS 32-6633-B1AC02-0
SUPPLY VOLT. DC 9,00 - 30,00 V
