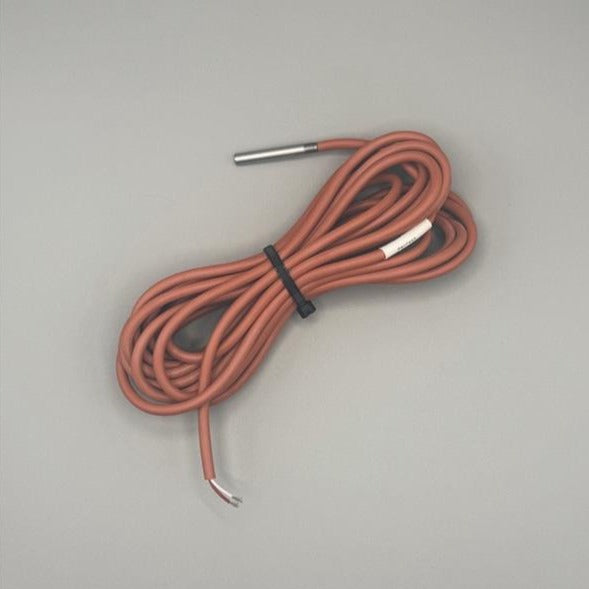

084N2008 - Danfoss AKS 21 Temp Sensor - High Temp 5M Cable
Original price
$130.88
Original price
$130.88
-
Original price
$130.88
Original price
$130.88
Current price
$116.34
$116.34
-
$116.34
Current price
$116.34
084N2008
Danfoss High Temp Sensor 5M cable.
Check out ETC's $18.73 generic version of this sensor, the ETC-AK21.
Used for high temp pipe applications.
Robust temperature sensor with large temperature range. Developed for use in demanding industrial applications.
AKS 21 is based on a PT element with a resistance of 1000 ohm at 0°C.
The sensors are adjusted and comply with the requirements to tolerance in DIN IEC 751, class B.
Product Specifications
| TYPE CODE | AKS 21 A |
| WEIGHT | 0.187 Kg |
| MAX. AMBIENT TEMP. [°C] | 180 °C |
| MAX. AMBIENT TEMP. [°F] | 356 °F |
| CABLE | 196,85 in |
| CABLE | 5,00 m |
| CABLE TEMP. RANGE | -60 - 200 °C |
| CABLE TYPE | Silicone |
| EAN NO. | 5702422026563 |
| ELECTR. CONN. | CABLE |
| ELECTR. CONN. SIZE | 2 wire |
| MEAS. RANGE | -70 - 180 °C |
| MEAS. RANGE | -94 - 356 °F |
| PROD. NAME | Temperature sensor |
| PROTECTION TUBE DIAM. | 0,23 in |
| PROTECTION TUBE DIAM. | 5,8 mm |
| PROTECTION TUBE LENGTH | 1,58 in |
| PROT. TUBE LENGTH | 40,0 mm |
| PROT. TUBE MAT. | STAINLESS STEEL |
| RESISTANCE | 1 x Pt x 1.000 |
| SENSOR ELEM. STANDARD | EN 60751 |
| SENSOR ELEM. TOL. | Class B |
| SENSOR INSERT | Fixed |
| WIRES | 2 PC |
