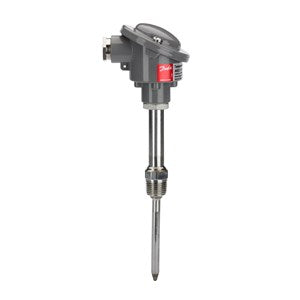

084N2032 - Danfoss Temperature Sensor
Original price
$374.24
Original price
$374.24
-
Original price
$374.24
Original price
$374.24
Current price
$336.82
$336.82
-
$336.82
Current price
$336.82
084N2032
Measuring range [°F]: -94 - 320, Sensor elem. resistance [Ohm]: 1000, Sensor element tolerance: Class B, Electrical connection: Type B.
Product Specifications
| Column1 | Column2 |
|
Gross weight |
0.31 kg |
| Net weight | 0.31 kg |
|
Ambient temperature max. [°C] |
160 °C |
| Ambient temperature max. [°F] | 320 °F |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Electrical connection | Type B |
| Electrical connection size | Pg 16 |
| Enclosure rating IP | IP56 |
| Measuring range [°C] [Max] | 160 °C |
| Measuring range [°C] [Min] | -70 °C |
| Measuring range [°F] [Max] | 320 °F |
| Measuring range [°F] [Min] | -94 °F |
| Process connection Male/Female | Male |
| Process connection size | 1/2 - 14 |
| Process connection standard | ANSI/ASME B1.20 |
| Process connection type | NPT |
| Product family name | AKS |
|
Product Group |
4/3 DIRECTIONAL VALVE |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.32 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube length [in] | 6.3 in |
| Protection tube length [mm] | 160 mm |
| Protection tube material | Stainless steel |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Type | AKS 21 W |
| Wires [pcs] | 2 pc |
