084N3210 - Danfoss 88.90 in, -58 °F - 248 °F
Original price
$34.99
Original price
$34.99
-
Original price
$34.99
Original price
$34.99
Current price
$31.10
$31.10
-
$31.10
Current price
$31.10
084N3210

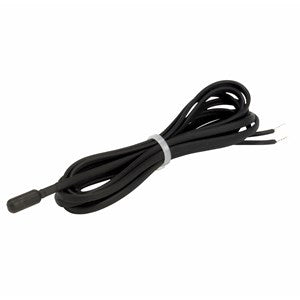

Measuring range [°F]: -58 - 248, Sensor elem. resistance [Ohm]: 10000, Sensor element tolerance: ± 1%, Electrical connection: Cable, Cable type: THERMOPLASTIC RUBBER, Cable length [in]: 88.90
Product Specifications
|
Gross weight |
0.03 kg |
| Net weight | 0.03 kg |
|
Ambient temperature max. [°C] |
120 °C |
| Ambient temperature max. [°F] | 248 °F |
| Cable length [in] | 88.9 in |
| Cable length [m] | 3.5 m |
| Cable tempr. range [°C] [Max] | 120 °C |
| Cable tempr. range [°C] [Min] | -50 °C |
| Cable type | THERMOPLASTIC RUBBER |
| Comments | CABLE SENSOR |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| Identical product | 084N3206 |
| Measuring range [°C] [Max] | 120 °C |
| Measuring range [°C] [Min] | -50 °C |
| Measuring range [°F] [Max] | 248 °F |
| Measuring range [°F] [Min] | -58 °F |
|
NTC Element characteristic |
10.000 OHM/25°C |
| Product family name | EKS |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.24 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | THERMOPLASTIC RUBBER |
| Sensor elem. resistance [Ohm] | 10000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 1% |
| Sensor element type | NTC |
| Type | EKS 221 |
| Wires [pcs] | 2 pc |
