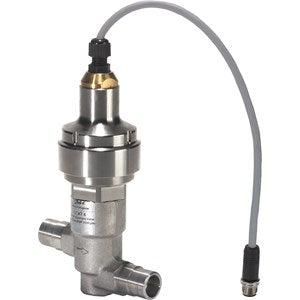

027H7200 - Danfoss CCMT 2 Electric Regulating Valve CO2

Original price $2,449.42
Original price $2,449.42 - Original price $2,449.42
Original price $2,449.42
Current price $2,160.19
$2,160.19 - $2,160.19
Current price $2,160.19

027H7200

Requires Motor Connection Cable

Danfoss CCMT 2 - CCMT 42 electric regulating valves. 5/8" x 5/8" ODF

Compatibility: R744.
MOPD: 90 bar (1305 psi).
Max. working pressure (PS/MWP): 140 bar (2030 psi).
Refrigerant temperature range: –40°C to 60°C (–40°F to 140°F).
Ambient temperature: –40°C to 60°C (–40°F to 140°F).
Total stroke: 4.8 mm (0.2 in.).
Motor enclosure: IP 67.

Product Specifications

TYPE CODE CCMT 2
WEIGHT 1.5 Kg
AMBIENT TEMP. RANGE -40 - 60 °C
AMBIENT TEMP. RANGE -40 - 140 °F
APPROVAL UL
SOLDER CONN. SIZE 5/8 IN
CONN. STD. EN10220
WELD CONN. SIZE 1/2 IN
CV VALUE 0,200 gpm US
DIFF. PRESS. SETTING RANGE 90,00 bar
DIFF. PRESS. SETTING RANGE 1.305,0 psi
EAN NO. 5702428444972
MORE INFO. SOLDER, ODF
KV VALUE 0,170 m3/h
MWP 140,0 bar
MWP 2.030 psig
MAX. OPD 90,0 bar
MAX. OPD 1.305 psig
DESCRIPT. Electric Expansion Valve
PROD. GROUP Press. and temp. regul. valves
PROD. NAME Electric regulating valve
REFRIGERANT R134a
REFRIGERANT R744
TEMP. RANGE -40 - 60 °C
TEMP. RANGE -40 - 140 °F
