027H7201 - Danfoss CCMT 4 - 5/8" x 5/8" ODF
Original price
$2,469.32
Original price
$2,469.32
-
Original price
$2,469.32
Original price
$2,469.32
Current price
$2,160.19
$2,160.19
-
$2,160.19
Current price
$2,160.19

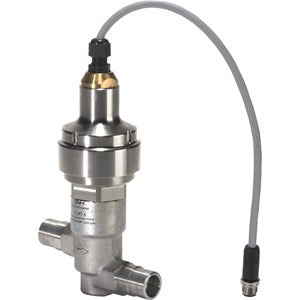

The Danfoss 027H7201 Electric Regulating Valve (CCMT 4) is built for high-pressure CO₂ refrigeration systems, offering precise control for gas bypass and expansion applications. Suitable for R744 and R134a, this valve supports efficient, reliable operation in transcritical and subcritical systems.
Note: Requires motor connection cable.
Product Specifications:
- Type Code: CCMT 4
- Total Stroke: 4.8 mm (0.2 in)
- Cv Value: 0.520 gal/min (0.450 m³/h)
- Diff. Pressure Setting Range: 1305 psi (90 bar)
- MaxOPD: 1305 psig (90 bar)
- Max. Working Pressure: 2030 psig (140 bar)
- Motor Enclosure: IP67
- Refrigerants: R134a, R744
- Refrigerant Temperature Range: –40°C to 60°C (–40°F to 140°F)
- Ambient Temperature Range: –40°C to 60°C (–40°F to 140°F)
- Connection Solder Size: 5/8 in
- Connection Weld Size: 1/2 in
- Weight: 1.5 kg
- Connection Standard: EN10220
- Refrigerant Compatibility: R744
- Product Name: Electric Regulating Valve
- Product Group: Pressure and Temperature Regulating Valves
- Product Description: Electric Expansion Valve
- EAN Number: 5702428453363
- Further Information: Solder, ODF
- Approval: UL
The 027H7201 Danfoss Electric Regulating Valve ensures accurate performance in CO₂ refrigeration applications, helping maintain system stability and efficiency under high-pressure conditions.
