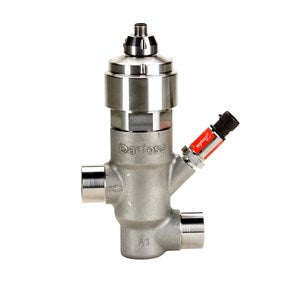

027H7232 - Danfoss Electric Regulating Valve CCMT 24
The 027H7232 Danfoss Electric Regulating Valve CCMT 24 is a superior choice for those seeking reliable and efficient control in HVAC systems. With its robust Cv value and high-pressure tolerance, it ensures effective regulation under challenging conditions. Ensure optimal performance by pairing it with the correct motor connection cable. For high-quality HVAC components and solutions, the CCMT 24 stands out as a dependable choice, enhancing your system’s efficiency and durability.
Product Specifications:
- Gross Weight: 3.03 kg
- Net Weight: 0.01 kg
- Ambient Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Approval: LLC CDC EURO-TYSK
- Connection Solder Size: 1 1/8 in
- Connection Standard: EN10220
- Connection Weld Size: 1 in
- Cv Value: 2.784 gal/min
- Diff. Pressure Setting Range: 90 bar (1305 psi)
- Kv Value: 2.4 m³/h
- Max. Working Pressure: 140 bar (2030 psig)
- Max OPD: 90 bar (1305 psig)
- Packing Format: Single pack
- Product Accessories: Electric valve accessories
- Serviceable: Electric valve spare parts
- Type: CCMT 24
- Product Family Name: CCMT
- Product Group: Pressure and temperature regulation valves
- Product Name: Electric regulating valve
- Quantity per Packing Format: 1 pc
- Refrigerants: R134a, R744, R410A
- UL Approved Refrigerants: R134a, R744
Note: Requires motor connection cable.
The 027H7232 Danfoss Electric Regulating Valve CCMT 24 is a high-performance electric expansion valve features a Cv value of 2.784 gal/min and can withstand a maximum working pressure of 2030 psig, making it ideal for demanding applications. Designed for use with refrigerants R134a, R744, and R410A, the CCMT 24 ensures precise temperature and pressure control.
