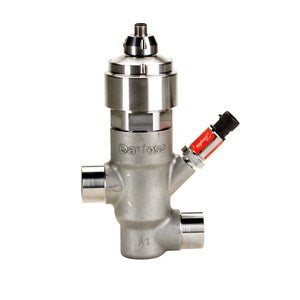

027H7233 - Danfoss Electric Regulating Valve CCMT 30
The 027H7233 Danfoss Electric Regulating Valve CCMT 30 stands out for its exceptional control and durability, making it an ideal choice for demanding HVAC applications. With its high Cv value and impressive pressure tolerance, this valve ensures reliable performance and precise regulation. Enhance your system’s efficiency by pairing it with the correct motor connection cable and exploring additional accessories. Trust the CCMT 30 to deliver superior control and reliability, ensuring your HVAC systems operate at their best.
Product Specifications:
- Gross Weight: 3 kg
- Net Weight: 2.54 kg
- Ambient Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Approval: LLC CDC EURO-TYSK
- Connection Solder Size: 1 1/8 in
- Connection Standard: EN10220
- Connection Weld Size: 1 in
- Cv Value: 3.480 gal/min
- Diff. Pressure Setting Range: 90 bar (1305 psi)
- Kv Value: 3 m³/h
- Max. Working Pressure: 140 bar (2030 psig)
- Max OPD: 90 bar (1305 psig)
- Product Accessories: Electric valve accessories
- Serviceable: Electric valve spare parts
- Type: CCMT 30
- Product Family Name: CCMT
- Product Group: Pressure and temperature regulation valves
- Product Name: Electric regulating valve
- Refrigerants: R134a, R744, R410A
- UL Approved Refrigerants: R134a, R744
Note: Requires motor connection cable.
The 027H7233 Danfoss Electric Regulating Valve CCMT 30 is an advanced electric expansion valve that offers a Cv value of 3.480 gal/min and supports a maximum working pressure of 2030 psig, ensuring robust operation under high-demand conditions. Suitable for refrigerants R134a, R744, and R410A, the CCMT 30 is designed to deliver precise temperature and pressure control.
