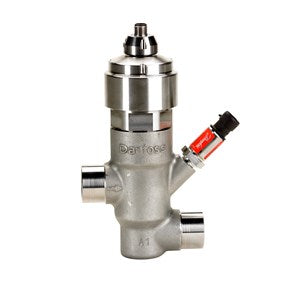

027H7234 - Danfoss Electric Regulating Valve CCMT 42
The 027H7234 Danfoss Electric Regulating Valve CCMT 42 is a high-performance electric expansion valve boasts an impressive Cv value of 4.872 gal/min and can handle a maximum working pressure of 2030 psig. Ideal for use with refrigerants R134a, R744, and R410A, the CCMT 42 ensures precise control over temperature and pressure. To maximize its capabilities, pair this valve with the appropriate motor connection cable and explore our selection of electric valve accessories. Trust the CCMT 42 for reliable and efficient performance in your HVAC systems.
Product Specifications:
- Gross Weight: 3.02 kg
- Net Weight: 0.01 kg
- Ambient Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Approval: LLC CDC EURO-TYSK
- Connection Solder Size: 1 1/8 in
- Connection Standard: EN10220
- Connection Weld Size: 1 in
- Cv Value: 4.872 gal/min
- Diff. Pressure Setting Range: 90 bar (1305 psi)
- Kv Value: 4.2 m³/h
- Max. Working Pressure: 140 bar (2030 psig)
- Max OPD: 90 bar (1305 psig)
- Product Accessories: Electric valve accessories
- Serviceable: Electric valve spare parts
- Type: CCMT 42
- Product Family Name: CCMT
- Product Group: Pressure and temperature regulation valves
- Product Name: Electric regulating valve
- Refrigerants: R134a, R744, R410A
- UL Approved Refrigerants: R134a, R744
Note: Requires motor connection cable.
The 027H7234 Danfoss Electric Regulating Valve CCMT 42 is engineered for those who demand exceptional control and durability in their HVAC systems. With its high Cv value and robust pressure handling capabilities, this valve is designed to perform efficiently in various applications.
