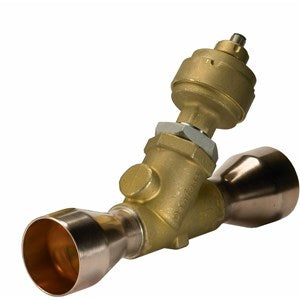

034G2852 - Danfoss Electric Regulating Valve 1 5/8 IN
Original price
$378.73
Original price
$378.73
-
Original price
$378.73
Original price
$378.73
Current price
$318.92
$318.92
-
$318.92
Current price
$318.92
034G2852
Electric regulating valve, Type: KVS 42, Inlet size [in]: 1 5/8 IN, Outlet size [in]: 1 5/8 IN, Connection type: Solder, ODF.
Product Specifications
|
Gross weight |
2.29 kg |
| Net weight | 1.6 kg |
|
Ambient temperature range [°C] [Max] |
60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE, EAC, LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Category | I |
| Compatible Danfoss controllers | EKC 368, EKE 1A, EKE 1B, EKE 1C |
| Connection material | Copper |
| Connection type | Solder, ODF |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| Flow direction | Bi-flow |
| Fluid Group | II |
| Full travel time speed [s] [Max] | 25.4 " |
| Full travel time speed [s] [Min] | 12.7 " |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 1 5/8 IN |
| Lubricants compatibility | All ester oils, all mineral oils |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100% |
| Max tot PowerCons CurrDrive[W] | 1.3 W |
| Max tot PowerCons VoltDrive[W] | 5.5 W |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 493 psig |
| MaxOPD [bar] | 33 bar |
| MaxOPD [psi] | 478.6 psi |
| MaxOPD reverse [bar] | 10 bar |
| MaxOPD reverse [psi] | 145 psi |
| MOPD[bar/psi] | 33 BAR (478.6 PSI) |
| Motor type | Bi-polar |
|
Outlet connection type |
Solder ODF |
| Outlet size [in] | 1 5/8 IN |
| Phase current (peak) [mA] | 141 mA |
| Phase current (RMS) [mA] | 100 mA |
| Phase inductance [µH] | 85000 µHz |
| Product accessories | Stepper valve accessories |
| Product family name | KVS |
| Product group | Press. and temp. regul. valves |
| Product name | Electric regulating valve |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | Delta p=0.2 bar, tcond= 25°C, tevap=10°C |
| Rated cap. conditions [SI] | Delta p=0.2 bar, tcond= 25°C, tevap=10°C |
| Rated capacity R134a [kW] | 29.3 kW |
| Rated capacity R134a [TR] | 8.3 tons |
| Rated capacity R22 [kW] | 40.4 kW |
| Rated capacity R22 [TR] | 11.4 tons |
| Rated capacity R404A/R507 [kW] | 35.3 kW |
| Rated capacity R404A/R507 [TR] | 10 tons |
| Refrigerant oil compatibility | All ester oils, all mineral oils |
| Refrigerant temperature [ºC] [Max] | 65 °C |
| Refrigerant temperature [ºC] [Min] | -40 °C |
| Refrigerant temperature [ºF] [Max] | 150 °F |
| Refrigerant temperature [ºF] [Min] | -40 °F |
| Refrigerants | R134a, R22, R404, R404A, R407A, R407C, R407F, R410A, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R513A, R1234ze €, R570A |
| Resistance [kOhm] | 0.0524 kOhm |
| Serviceable | Stepper valve spare parts |
| Step mode | 2-phase full step |
| Total steps | 3810 (full steps) |
| Type | KVS 42 |
| Voltage [V] DC [Max] | 13.8 V |
| Voltage [V] DC [Min] | 11.5 V |
