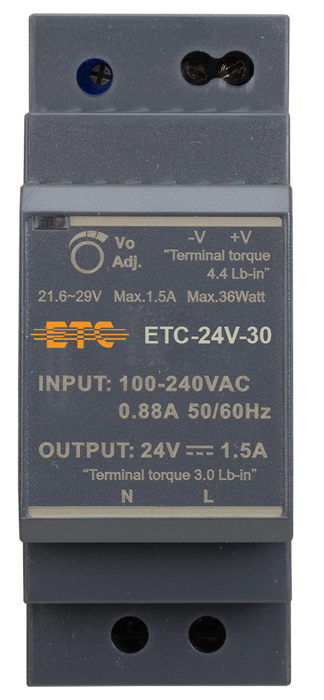

ETC-24V-30 Power Supply (Equivalent to Danfoss 080Z0053)
ETC-24V-30
The ETC-24V-30 is a high quality and economical din rail mounted 60W power supply. This rugged device is meant to withstand tough working conditions at ambient temperatures between-22°F(-30°C) to 158°F (70°C). The ETC-24V-60 accepts a full range of AC input from 85VAC to264VAC (277VAC Operational).The industrial certifications for this device ranging from (IEC62368-1,UL508,UL62368-1,BSEN/EN61558-2-16)makeETC-24V-60averycapablepowersupply for industrial control applications.
Product Specifications
Input power:
|
VOLTAGE RANGE |
85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational) |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ.) |
90% |
|
AC CURRENT (Typ.) |
1.2A/115VAC 0.8A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START: 30A/115VAC 60A/230VAC |
Output Power:
|
DC VOLTAGE |
24V |
|
RATED CURRENT |
1.5A |
|
CURRENT RANGE |
0 ~ 1.5A |
|
RATED POWER |
30W |
|
RIPPLE & NOISE (max.) ** |
150mVp-p |
|
VOLTAGE ADJ. RANGE |
21.6 ~ 29V |
|
VOLTAGE TOLERANCE *** |
±1.0% |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
SETUP, RISE TIME |
500ms, 50ms/230VAC |
|
HOLD UP TIME (Typical) |
30ms/230VAC 12ms/115VAC at full load |
Protection:
|
OVERLOAD |
105 ~ 160% rated output power |
|
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed |
|
|
OVER VOLTAGE |
18.8 ~ 22.5V Protection type: Shut down o/p voltage, re-power on to recover |
Opperating Enviornment:
|
WORKING TEMP. |
-30 ~ +70℃ |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95% RH non-condensing |
|
TEMP. COEFFICIENT |
±0.03%/℃ (0 ~ 50℃) RH non-condensing |
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
|
OPERATING ALTITUDE |
2000 meters |
